The profile adopts a high load-bearing structure, which effectively shares the weight of the glass with the wall structure and prevents the profile insulation strip from breaking.

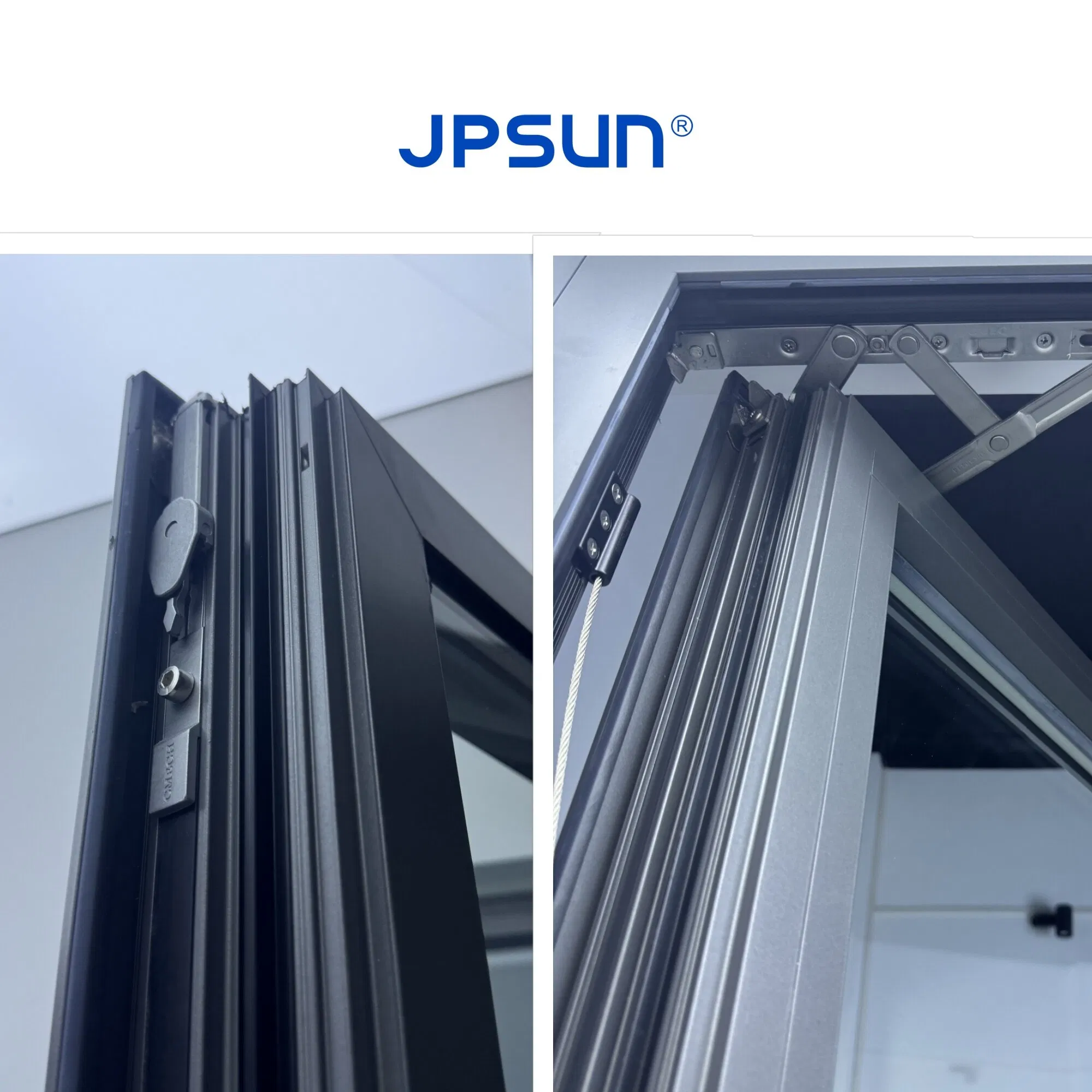

Standard configuration uses nylon transmission rods for transmission, which reduces unnecessary noise generated by hardware and provides a premium smooth feel.

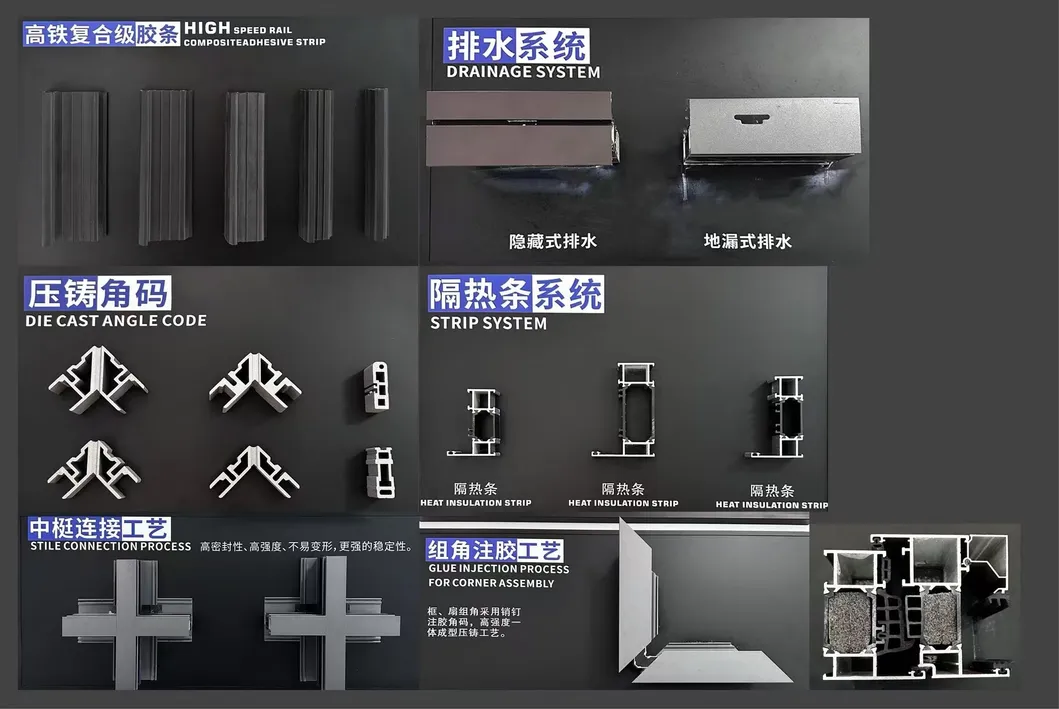

Adopting a three-layer sealing structure with EPDM sponge composite sealing strips, enhancing both air tightness and water tightness significantly.
| JC92 Series Product Parameters | |||
| Water Tightness | △P≥700Pa | Window Frame | 92mm |
| Air Tightness | q1≤0.5, q2≤1.5m³/(m·h) | Frame Thickness | 1.8mm |
| Wind Resistance | P3≥5.0kpa | Window Sash | 102mm |
| Thermal Insulation | 1.0w/(m²·k) ≤ U < 1.1w/(m²·k) | Sash Width | 450mm - 1200mm |
| Sound Insulation | 35db ≤ Rw < 40db | Sash Height | 500mm - 2200mm |

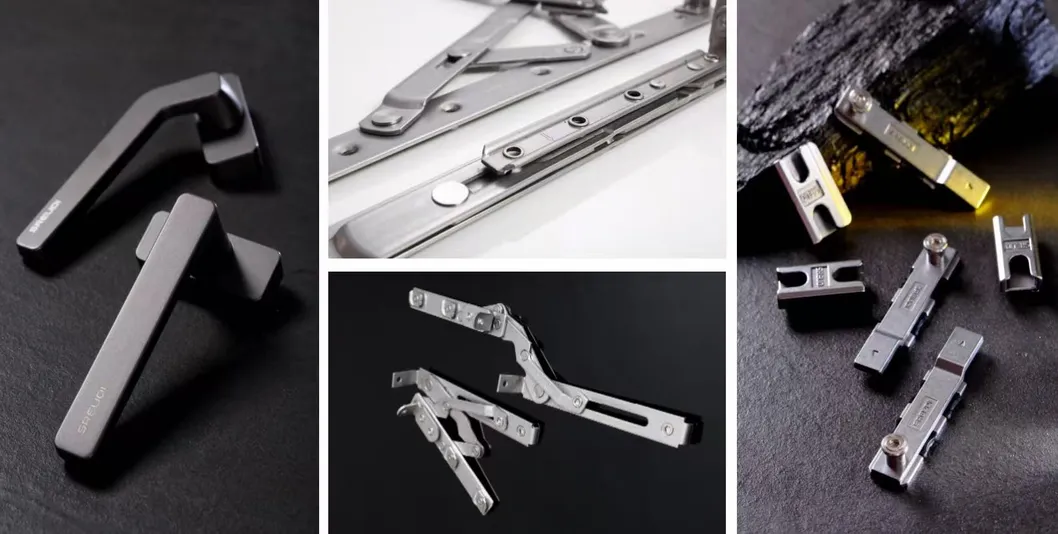

The product can be equipped with either Chinese or international hardware brands, using high-quality hardware to enhance the overall performance and user experience.

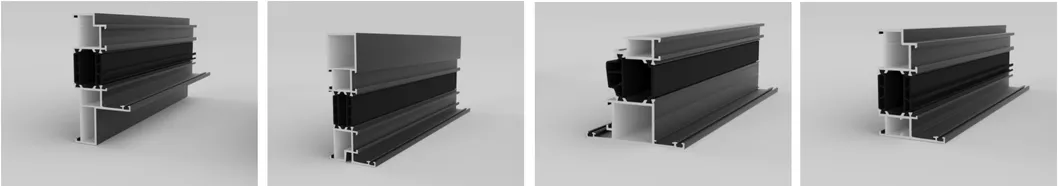

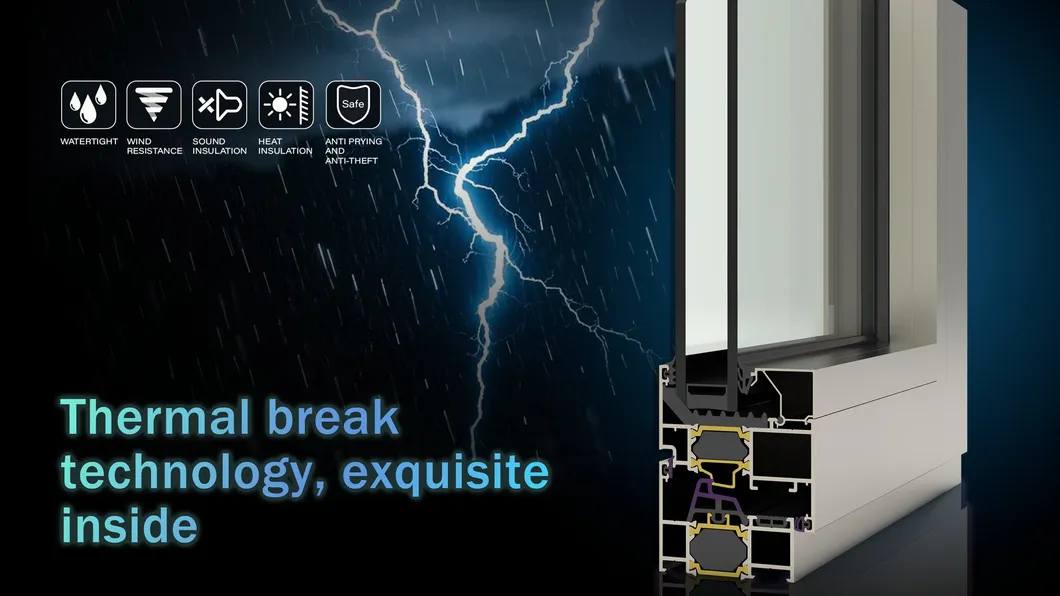

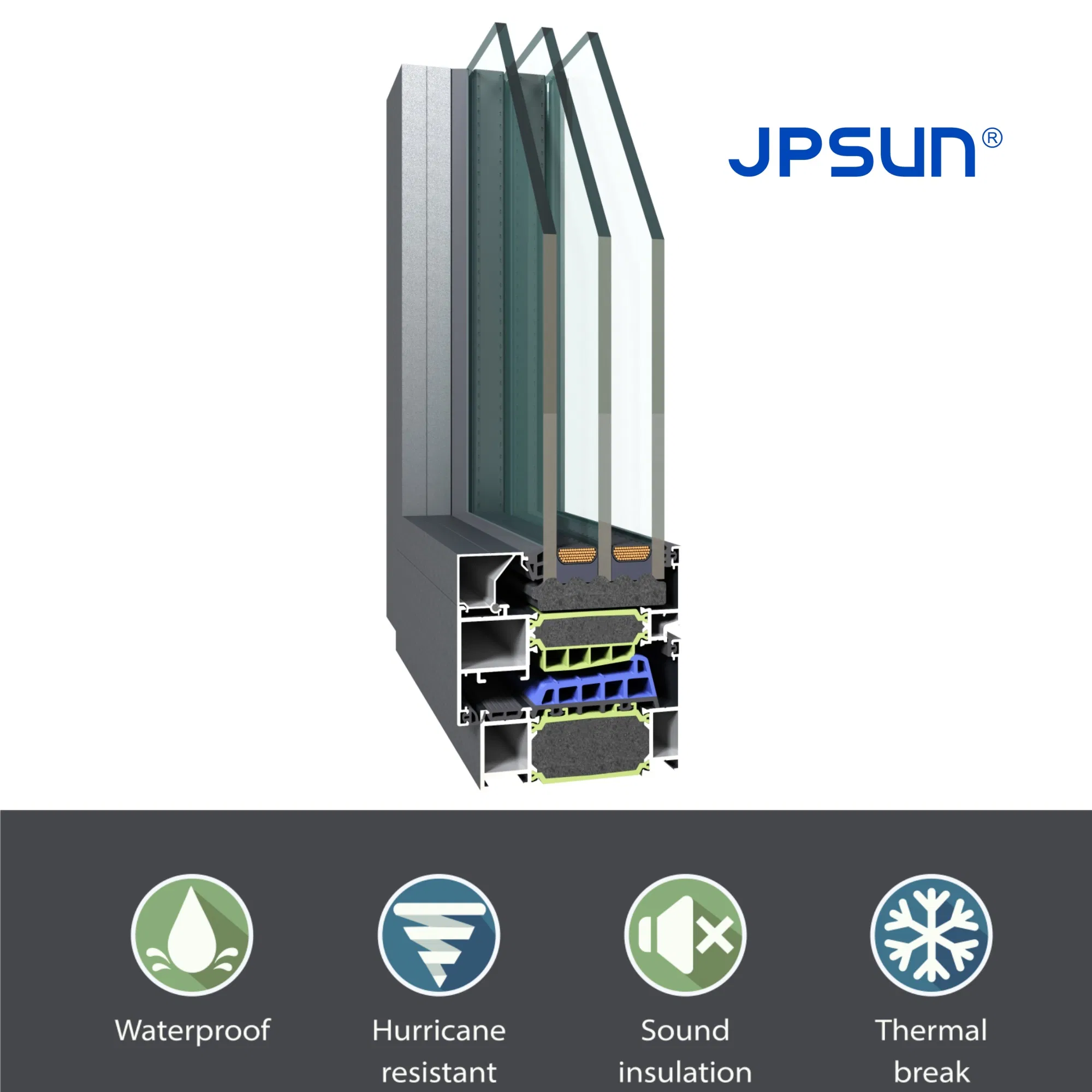

Utilizes thermal break aluminum alloy profiles designed with insulation strips, offering excellent energy efficiency, corrosion resistance, and high strength.

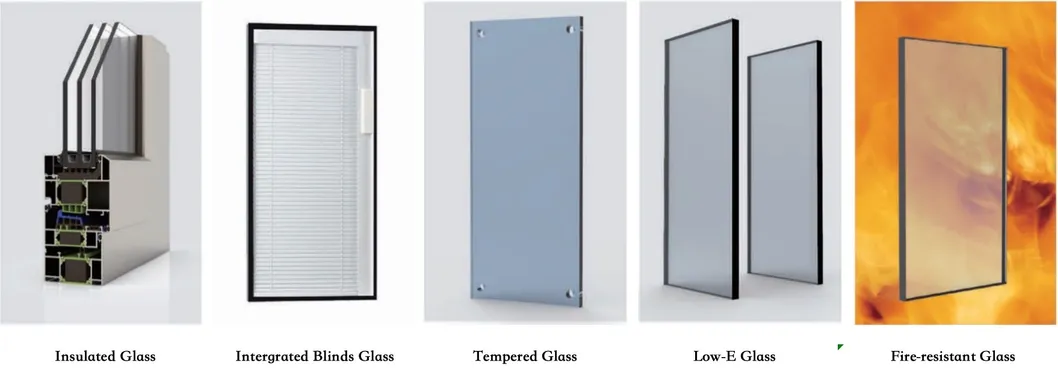

Options include insulated (double/triple-glazed), tempered, laminated, fire-resistant, integrated blinds, coated, smart, and bulletproof glass.

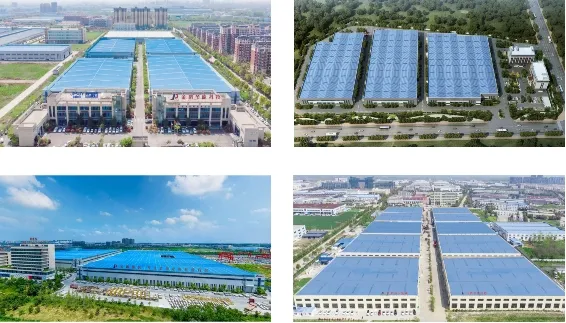

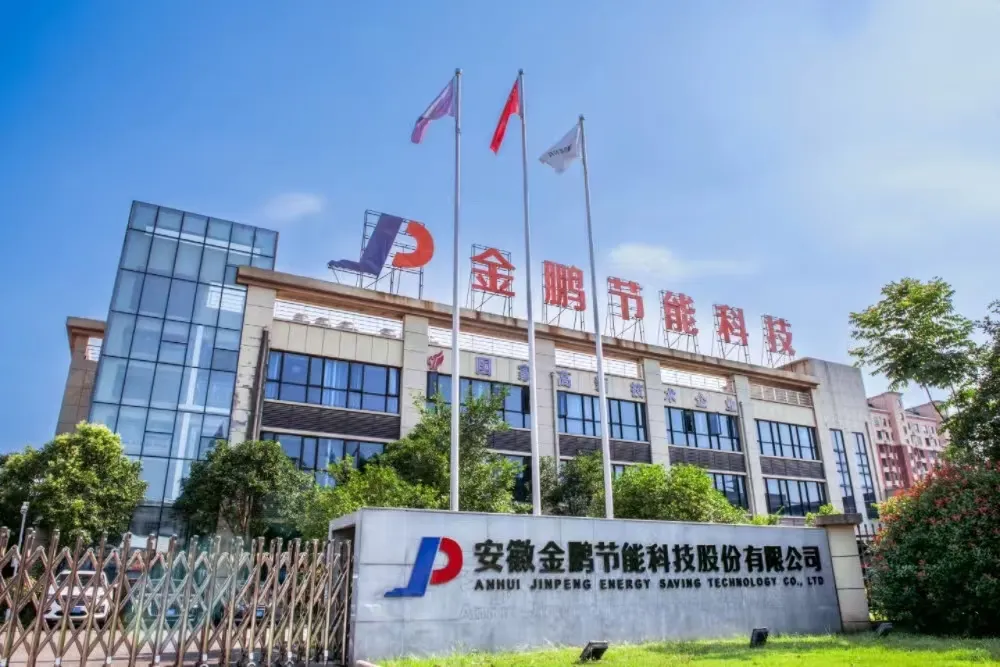

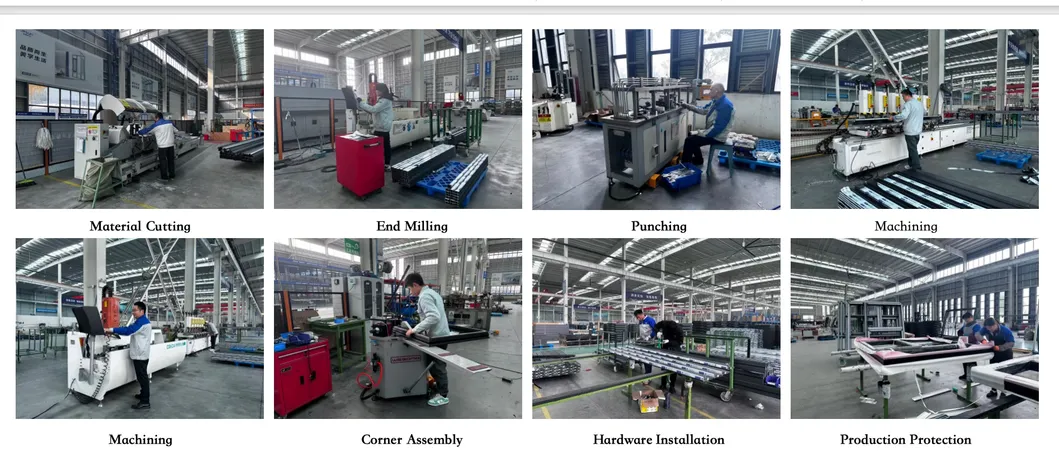

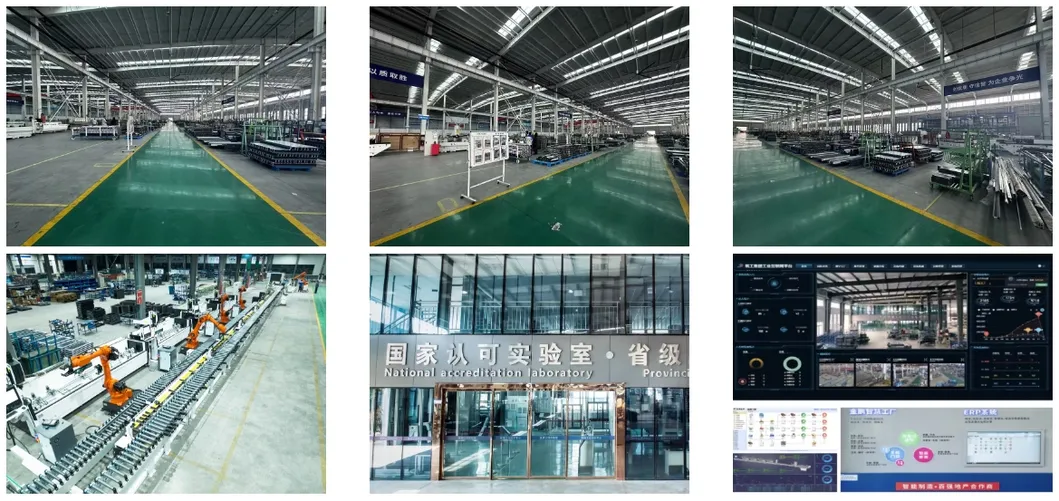

JPSUN has been specializing in the door and window production industry for over thirty years. We operate four manufacturing facilities with a workforce of nearly 1,000 employees, achieving an annual production capacity of 3 million square meters. Our facilities feature state-of-the-art machinery and automated production lines integrated with an industrial Internet platform.
Certification: We host a national-level CNAS-certified laboratory to ensure material quality monitoring and product excellence.
